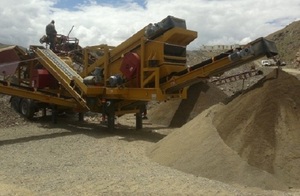

DRAGON 7 NEW GENERATION TURBO CRUSHING SYSTEM

Rotor Size : 1000 X 650 mm
Crusher type : Primary , Secondary and Tertiary .
Feeding size : 600 X 600 mm
Motor power : 110 kw
Rotor pallets are 16-18% manganese and chrome alloy. It is also suitable for two-sided use. Longer wear times can be caught on this count.
The setting blocks are 16-18% manganese and chrome alloy. The adjustment blocks have a hydraulic adjustment mechanism for easy adjustment.
The crusher has 2 long type adjustment blocks for thinning. Thanks to these blocks, the thinning curve is very high.
Hardox 500 wear armor is used in the breaker side wall armor.
There are also two lifting pistons for opening and closing the crusher.
The powerful body is unique thanks to its powerful rotor and powerful adjustment blocks.
It is unprecedented with high reduction rates of up to 50 times.
When a material that can not break into the crusher enters, the hydraulic overload prevention device enters the circuit and the crusher elements are protected.
When a material that can not break enters into the crusher , the hydraulic overload prevention system blocks the circuit and the crusher elements are protected.
Main Conveyor Belt System
It is 750 mm wide and is of palette type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. Side scraper system is available to prevent outflow.
Vibrating Screen Belt System
Screen Size : 1300 X 3500 mm
Vibrating Screen Type : High Capacity
Motor Power : 11 KW
Three different sizes of screening.
Special type bearing suitable for vibration.
Under-Sieve Stock Conveyor Belt System
It is 700 mm wide and foldable type. Drive drums are rubber coated and threaded. The gear units are 3 transmission type and the new generation is with torque connection system. A side scraper system is available to prevent spillage of the final product into the stock area during crushing. Foldable with hydraulic piston for easy assembly and disassembly of the system.
Stock Conveyor Belt System
There are 2 units, 500 mm wide folding type.
Drive drums are rubber coated and threaded.
The gear units are 3 transmission type and the new generation is with torque connection system.
A side scraper system is available to prevent spillage of the final product into the stock area during crushing.
Foldable with hydraulic piston for easy assembly and disassembly of the system.
Feedback Conveyor Belt System 1
It is 500 mm wide.
Drive drums are rubber coated and threaded.
The gear units are 3 transmission type and the new generation is with torque connection system.
Side scraper system is available to prevent outflow.
Feedback Conveyor Belt System 2
It is 500 mm wide and is of palette type.
Drive drums are rubber coated and threaded.
The gear units are 3 transmission type and the new generation is with torque connection system.
Side scraper system available to prevent outflow.
By-Pass Conveyor Belt System
It is 500 mm wide.
Drive drums are rubber coated and threaded.
The gear units are 3 transmission type and the new generation is with torque connection system.
Foldable with hydraulic piston for easy installation and disassembly of the system
Side scraper system is available to prevent outflow.
