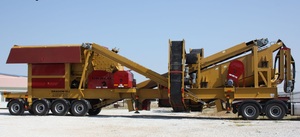

Mobile Crushing and Screening Plant Closed Circuit Type Dragon 10 - Bhisho

Primary, Secondary and Tertiary functions one machine.
Rotor Size : Turbo Impact Crusher 1000x1300mm
Strong Body, Strong rotor, strong setting blocks
185 kW Motor , sheaves, v-belts
We furnish the liners of Dragon Turbo Crushers by Hardox 500.

Rotor pallets 16-18 % manganese, chromium

Setting block Liners 16-18 % manganese, chromium

Easy adjustment mechanism

Improved latest technology Crushing system
Main Feed Belt

1000 mm Conveyor belt
Motor : 7,5 kW
Remote Control For One-Man-Operation.

Dragon Screen High Capacity Type

Screen Size : 1500x 4500 mm 3 Deck High Capacity Screen

Motor : 15 kw

Stock Conveyors 3 Unit

2 Unit

600 mm Conveyor belt
Motor : 4 kW
1 Unit

1000 mm Conveyor belt
Motor : 5,5 kW
Feedback Conveyor 1.

600 Conveyor belt

Motor : 2.2 Kw

Feedback Conveyor 2.

600 Conveyor belt
Motor : 5,5 kW Motor
Hydraulic block adjustment, Easy To Setup, Primary Block, Secondary Block

Control Board: Siemens Brand Electrical Equipment

Standard Equipment

Extra Hopper + 10 m3
Dust Control System - Dust Reduction
Bypass Conveyor Belt
Optionals

Generator ( Cummins , Perkins , Cat , Doosan ) Engine power 400 kva generator (Optional)
Magnet Conveyor Belt ( Optional )
Mobile Crushing and Screening Plant DRAGON 10

Maximum feeding size : 1000mm
Ideal feeding size: 0 - 800 mm
Final size : 0 - 20 mm (0-5 mm , 5-12 mm ,12-20 mm or requested three types material and plus by-pass output production )
Feed Capacity: 150 – 250 t/h
Transport dimensions (w x h x l) 3,000 x 4,500 x 16,500 mm
Machine weight : 46,000 kg
