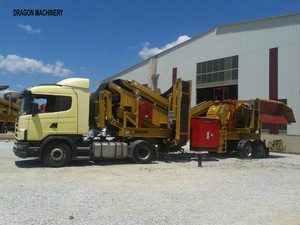

New Generation Mobile Crushing and Screening Plant Closed Circuit Type Dragon 7 - Bhisho

Dragon 7 wheel suspension
Total teen(10) blocking legs four(4) of them hydraulic ally operated
Airbrakes, running lights, and mud flaps
Fixed walkway on both sides with hand rails
Walkways and ladders both sides of screen & front crossover
Access ladder to chassis
Hydraulic System and Hydraulic Legs
Mobile Chassis 2 axle chassis
Four (4) hydraulic levelling jack system
Hopper and Feeder
Hopper: 10 m3
Vibrator System
Feeder Grizzly System
Feeder Size : 650 x 2800 mm 2 nos. Vibrator adjusttable throw amplitude italvibras or Oli brand
Turbo Impact Crusher
Primary , Secondary and Tertiary functions one machine.
Rotor Size : 1000 x 650mm New Generation , New System Crusher
Strong Body, Strong rotor, strong setting blocks
110 kw Motor , sheaves, v-belts
We furnish the liners of Dragon Turbo Crushers by Hardox 500.
Rotor pallets 16-18 % manganese, chromium
Setting block Liners 16-18 % manganese, chromium
Easy adjustment mechanism
2 Side usable pallets
Improved latest technology Crushing system
Main Conveyor Belt
750 mm Main Conveyor belt
Main Conveyor 5,5 kW
New system gearbox reduction
Dragon Screen 3 Deck High Capacity
Screen Size :1250x 3000 mm 3 Deck High Capacity
Motor : 11 kW
Stock Conveyors 3 Units
2 units: 500 mm stock conveyor belt
Motor : 3 kW
1 unit: 700 mm stock conveyor belt
Motor : 4 kW
1. Feedback Conveyor 500 mm
Motor: 2.2 kW
2. Feedback Conveyor 500 mm
Motor : 3 kW
Hydraulic block adjustment, Easy To Setup, Primary Block
Mobile Chassis :
Control Board Schneider Electric
Turbo crusher enabling speed setting
Remote Control For One-Man-Operation.
Siemens Brand Electrical Equipment
Standard Equipment
Extra Hopper + 7 m3
Dust Control System - Dust Reduction
Bypass Conveyor Belt
Optionals
Generator ( Cummins , Perkins , Cat , Doosan ) Engine power 200 kva generator (Optional)
Magnet Conveyor Belt ( Optional )
New Technology Crushing and Screening plant Closed Circuit Crushing Plant
New Product
New technology
This is a revolution Crushing and Screening plant Closed Circuit Crushing Plant Dragon 7
New System Crushing and Screening plant latest Technology
Easy, Practical, Quick Installation, simple transport, use it anywhere.
Mobile Crushing and Screening Plant DRAGON 7
Maximum feeding size : 600mm
Ideal feeding size : 0 - 500mm
Final size : 0 - 20 mm (0-5 mm , 5-12 mm ,12-20 mm or requested three types material and plus by-pass output production )
Feeding capacity 80 – 100 t/h
Transport dimensions (w x h x l) 3,000 x 4,400 x 12,000 mm
Total weight 32.000 kg
