Jaw Crusher 600 x 400 mm_Hard Stone Crusher Plant , Turbo 600 - Bhisho
Saturday, 18 February 2017
Item details
City:
Bhisho, Eastern Cape
Offer type:
Sell
Item description

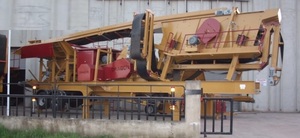

New System Mobile Crusher Plant Turbo 600
Mobile Chassis
Dragon 600 wheel suspension
Total Fourteen(12) Blocking Legs
Airbrakes, running lights, and mud flaps
Fixed walkway on both sides of cone with hand rails and kick plate
Walkways and ladders both sides of screen & front cross over
Access ladder to chassis
Hydraulic raise and lower screen subframe
Hydraulic Levelling System
Six (6) hydraulic levelling jack system
Hydraulic System and Hydraulic Legs
Feeder Module
Mobile Chassis 2 axle chassis
Feeder and Hopper
Feeder Size : 750x 3000 mm Hopper 10 m3
Vibrator System Feeder
Grizzly System Feeder
2 nos. Vibrator adjusttable throw amplitude italvibras or Oli Brand
Jaw Crusher 600 x 400 mm
Size: 600x400 mm Primary type
Motor: 30 kW
Jaw Crusher Is Setting Mechanism can be adjusted easily.
Main Conveyor System
Type tracked conveyor.
High Capacity Vibrating Screen
Size : 1300×4000 mm 3 Deck
Motor : 11 Kw
Impact Crusher ( Hard Material Crusher )
1100x 750mm
Motor : 90-160 Kw
Stock Conveyor
3 Unit
Feedback Conveyor Belt 2 Pcs
500 mm - 600 mm
Control Board : Siemens Brand Electrical Equipment
Remote Control for One-Man-Operation.
Standard Equipment
Extra Hopper + 8 m3
Dust Control System - Dust Reduction
Bypass Conveyor Belt
Optionals
Generator ( Cummins , Perkins , Cat , Doosan ) Engine 450 kva generator (Optional)
Magnet Conveyor Belt ( Optional )
Mobile Crusher Plant Turbo 600
Maximum feeding size : 600mm x 400mm
Ideal feeding size: 0 - 400mm
Final size : 0 - 25 mm (0-5 mm , 5-12 mm , 12-20 mm or requested three types material and plus by-pass output production )
Transport Dimensions (wxhxl): 3000x4500x14000mm
Total Weight : 41.000 Kg
DRAGON CRUSHER
Mobile Chassis
Dragon 600 wheel suspension
Total Fourteen(12) Blocking Legs
Airbrakes, running lights, and mud flaps
Fixed walkway on both sides of cone with hand rails and kick plate
Walkways and ladders both sides of screen & front cross over
Access ladder to chassis
Hydraulic raise and lower screen subframe
Hydraulic Levelling System
Six (6) hydraulic levelling jack system
Hydraulic System and Hydraulic Legs
Feeder Module
Mobile Chassis 2 axle chassis
Feeder and Hopper
Feeder Size : 750x 3000 mm Hopper 10 m3
Vibrator System Feeder
Grizzly System Feeder
2 nos. Vibrator adjusttable throw amplitude italvibras or Oli Brand
Jaw Crusher 600 x 400 mm
Size: 600x400 mm Primary type
Motor: 30 kW
Jaw Crusher Is Setting Mechanism can be adjusted easily.
Main Conveyor System
Type tracked conveyor.
High Capacity Vibrating Screen
Size : 1300×4000 mm 3 Deck
Motor : 11 Kw
Impact Crusher ( Hard Material Crusher )
1100x 750mm
Motor : 90-160 Kw
Stock Conveyor
3 Unit
Feedback Conveyor Belt 2 Pcs
500 mm - 600 mm
Control Board : Siemens Brand Electrical Equipment
Remote Control for One-Man-Operation.
Standard Equipment
Extra Hopper + 8 m3
Dust Control System - Dust Reduction
Bypass Conveyor Belt
Optionals
Generator ( Cummins , Perkins , Cat , Doosan ) Engine 450 kva generator (Optional)
Magnet Conveyor Belt ( Optional )
Mobile Crusher Plant Turbo 600
Maximum feeding size : 600mm x 400mm
Ideal feeding size: 0 - 400mm
Final size : 0 - 25 mm (0-5 mm , 5-12 mm , 12-20 mm or requested three types material and plus by-pass output production )
Transport Dimensions (wxhxl): 3000x4500x14000mm
Total Weight : 41.000 Kg
DRAGON CRUSHER
