Turbo Impact Crusher

Primary, Secondary and Tertiary functions one machine.

Rotor Size : 1000 x 800mm New Generation , New System Crusher

Strong Body, Strong rotor, strong setting blocks
110 – 160 kw motor 1500 RPM, sheaves, v-belts

We furnish the liners of Dragon Turbo Crushers by Hardox 400,450,500.
Rotor pallets 16-18 % manganese, chromium
Setting block Liners 16-18 % manganese, chromium
Hydraulic opening system
Easy adjustment mechanism
Improved latest technology Crushing system
Main Feed Belt

800 mm Main Conveyor belt

Main Conveyor 7,5 kw Electrical Motor
New System Gearbox reduction

Dragon Screen 3 Deck High Capacity

Screen Size :1300x 4000 mm 3 Deck High Capacity Screen

Motor : 11 Kw Electrical Motor

Stock Conveyors 3 Unit

2 Unit 600 mm Conveyor belt
Motor : 4 kw Electrical Motor


1 Unit 800 mm Main Stock Conveyor belt

Motor : 5,5 Kw Electrical Motor

Feedback Conveyor 1. 600 mm

Motor: 2.2 kw

Feedback Conveyor belt 2. 600 mm
Motor : 4 kw Electrical Motor


Hydraulic block adjustment, Easy To Setup, Primary Block, Secondary Block

Mobile Chassis :2 axle chassis

Control Board : Siemens

Hydraulic System
Frequency and Speed Control system Turbo Crusher Enabling Speed setting (Optional)

This system for fuel savings of 50% , Approx fuel consumption 10 - 14 Lt / h

4 Deck Screen : 4 Deck and 4th Stock Conveyor Belt (Optional )

Generator ( Optional )

Extra Hopper + 8 m3

Cummins , Perkins , Cat , Doosan

Engine Power 275 Kva Generator

Feeding size max. 800 x 800 mm
Feeding height 3,600 mm

Feed capacity 100 – 160 t/h

Transport dimensions (w x h x l) 3,000 x 4,500 x 415000 mm
Machine weight 40,000 kg

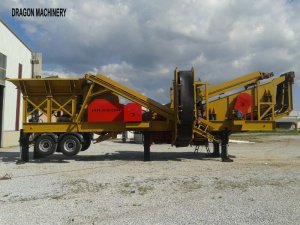

Mobile Crushing and Screening Plant DRAGON 9

Maximum feeding size : 800mm

Ideal feeding size : 0 - 650 mm

Final size : 0 - 20 mm (0-5 mm , 5-12 mm ,12-20 mm or requested three types material and plus by-pass output production )

New Technology Crushing and Screening plant Closed Circuit Crushing Plant
New Product
New technology * This is a revolution
Crushing and Screening plant Closed Circuit Crushing Plant

Dragon 9
New System Crushing and Screening plant latest Technology
Easy, Practical, Quick Installation, simple transport, use it anywhere.
