Crusher and Screener Plant New Generation - New Type Turbo 950 - Bhisho

Jaw Crusher Primary type

Size: 900x650 mm

Primary type Motor power: 75-90 kW

Jaw Crusher Is Setting Mechanism can be adjusted easily.



3. Main Conveyor System Size : 900 mm



4. High Capacity Vibrating Screen

Size : 1800×4500 mm 3 Deck

Motor Power 22 kW



5. Hard Material Crusher

Impact Crusher 1300×1100 mm

Motor : 132 Kw - 160 kW



6. Stock Conveyor 3 Unit Folding type



7. Feedback Conveyor Belt 2 Pcs

600 mm - 750 mm



8. Mobile Chassis 3-axle Chassis

9. Control Panel Chassis Coupled

10. Remote Control for One-Man-Operation.

11. Hydraulic System and Hydraulic Legs

12. Bypass Conveyor Belt ( Optional )

13. Generator ( Optional )

14.* Frequency and Speed Control system Turbo Crusher Enabling Speed setting (Optional) This system for fuel savings of 50% , Approx fuel consumption 30 - 35 Lt / h

15. Extra Deck - Screen 4 Deck : 4 Deck and 4th Stock Conveyor Belt (Optional )

16. Extra Hopper + 10 m3 ( Optional )

17. Magnet Conveyor Belt ( Optional )

Transport Dimensions (wxhxl): 3200x4500x19000mm

Total Weight : 60.000 Kg

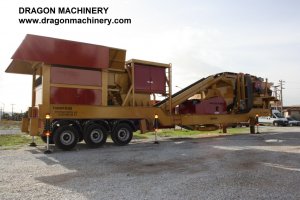

Mobile Crusher Plant Turbo 950

Maximum feeding size : 900mm x 650mm

Ideal feeding size: 0 - 600mm

Final size : 0 - 180 mm or requested two types material and plus by-pass output production.
